4.3-inch Wide-viewing-angle IPS Touchscreen Display 800×480 Resolution I²C Touch Customizable Brightness

Product Description:

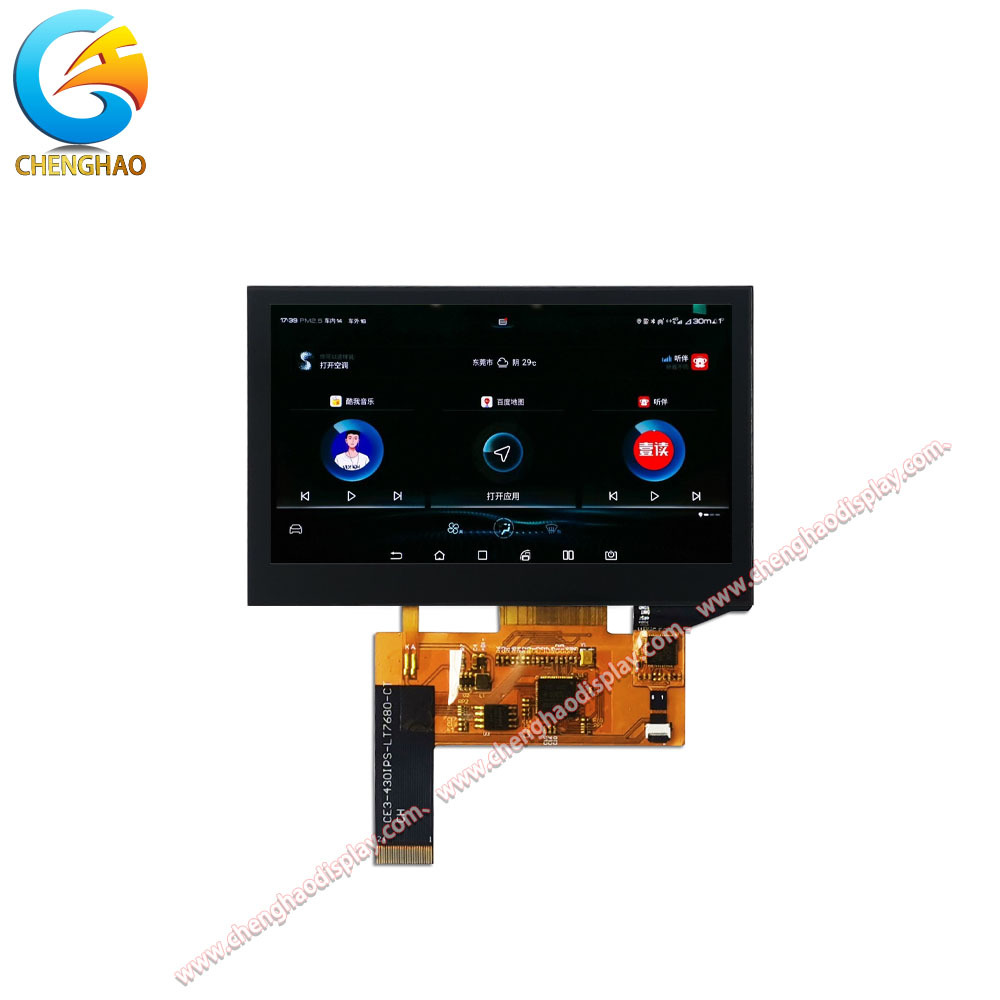

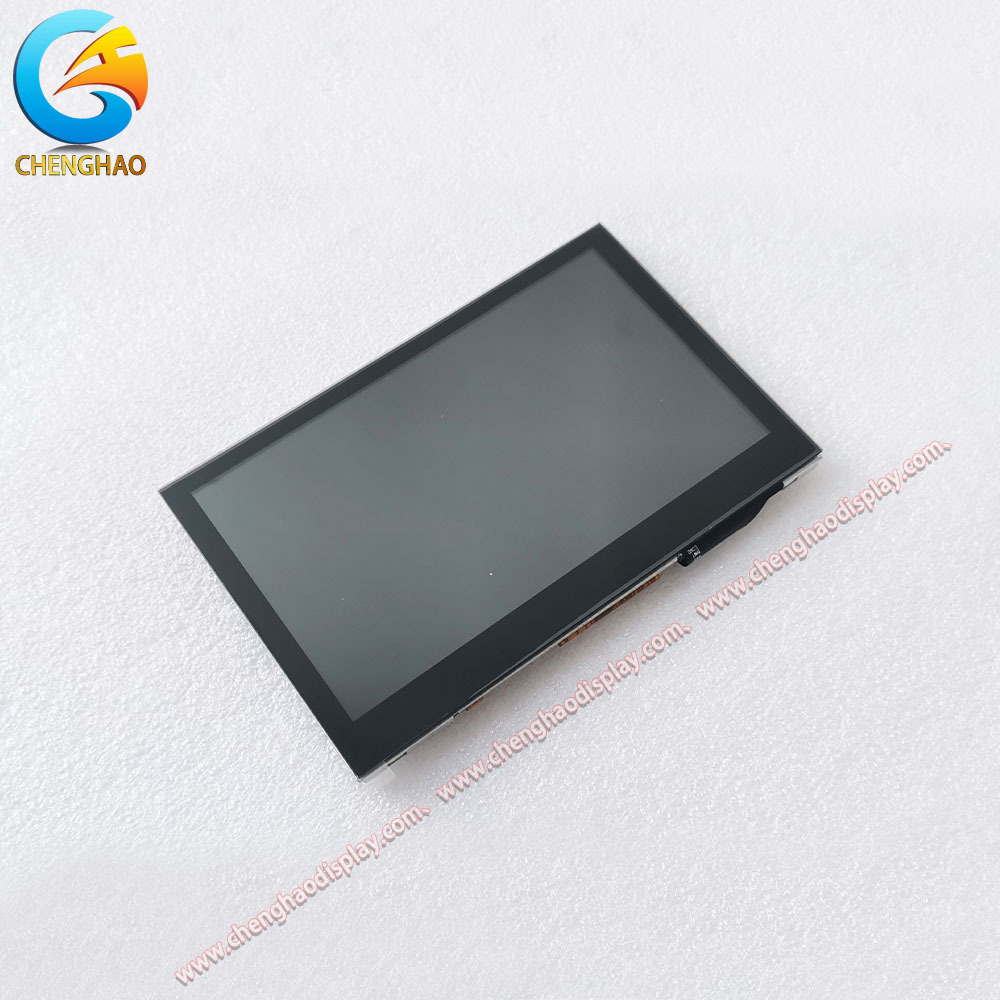

The CH430WQ22A-CT is an advanced 4.3-inch TFT LCD display module, engineered for high performance in various applications. With a resolution of 800x480 dots, this display delivers vibrant visuals, with a stunning brightness of 800 cd/m², customizable up to 1500 cd/m², making it ideal for both indoor and outdoor environments. The module employs IPS technology, providing a wide viewing angle of 80/80/80/80 degrees, enabling clear visibility from multiple perspectives. It features a capacitive touch interface, but can also be customized for resistive touch or no touch, ensuring versatility for different user interactions. The display operates efficiently within temperatures ranging from -20 to +70 °C, and can be stored in conditions as extreme as -30 to +80 °C. Designed for seamless integration, the module supports various interfaces including SPI, RGB, and HDMI, allowing flexible connectivity options for diverse applications. Measuring at a compact size of 105.5mm x 67.2mm x 4.75mm, with an active area of 95.04mm x 53.86mm, it is perfect for fitting into space-constrained designs.

Features:

• Compact Size: With dimensions of 105.5mm x 67.2mm x 4.75mm, it fits easily into various designs, especially where space is limited.

• High Resolution: The 800x480 resolution ensures clear and crisp images, making it suitable for detailed applications.

• Wide Viewing Angles: The 80-degree viewing angle in all directions provides consistent color and clarity, optimally serving various viewing positions.

• Brightness Options: Standard brightness is at a remarkable 800 cd/m², with customizable options ranging from 300 cd/m² to a dazzling 2800 cd/m², accommodating different environmental needs.

• Versatile Interface Compatibility: Supporting SPI, MCU, RGB, LVDS, and HDMI interfaces, this module can be integrated easily into different systems.

• Operating Temperature Flexibility: With a temperature range of -20 to +70 °C, it operates in various climates, and custom operating ranges allow for additional adaptability.

• Touch Interface Options: Users can opt for capacitive touch for a modern interface experience, with the ability to switch to resistive touch or no touch based on application requirements.

Technical Parameters:

Customization:

The CH430WQ22A-CT module stands out not just for its base features, but also for its extensive customization options tailored to meet unique application requirements.

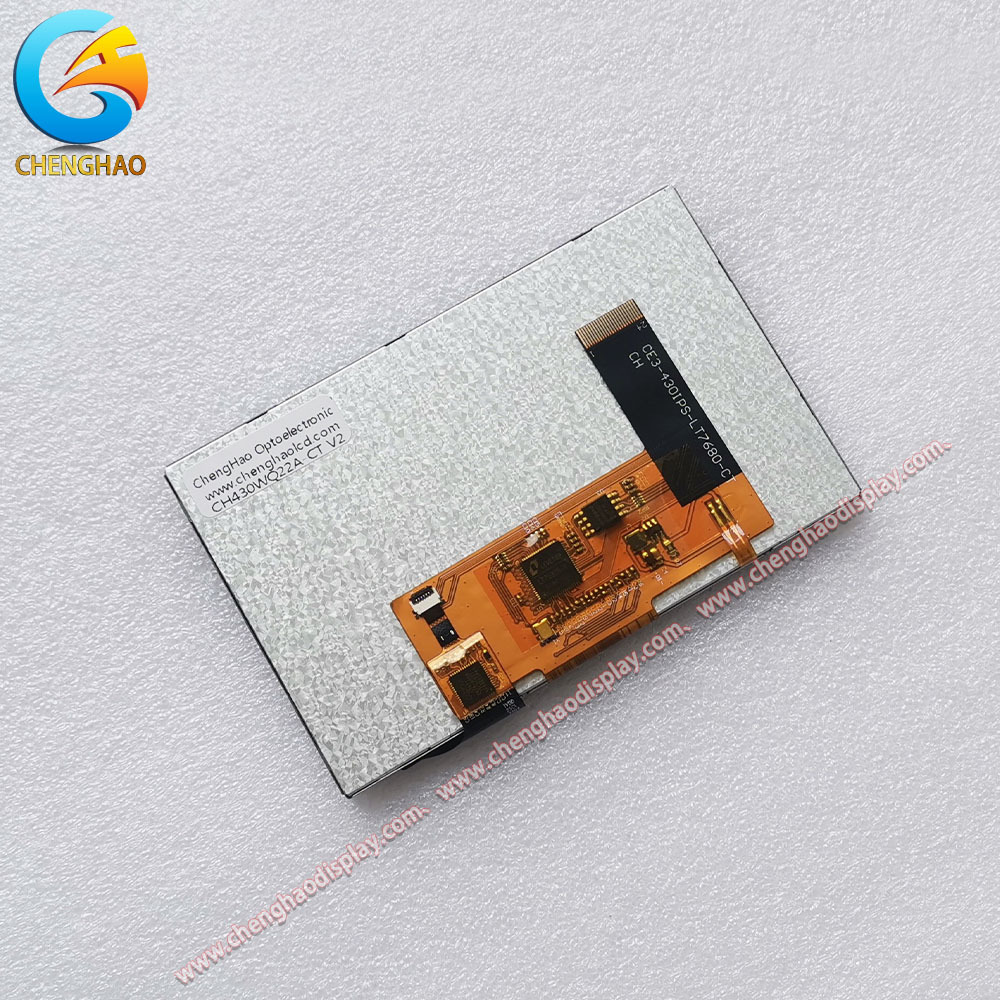

(1)FPC Customization: Customers can request specific FPC shapes, structures, and pin configurations, ensuring perfect integration with their devices.

(2)Interface Selection: The module supports multiple display interfaces, providing flexibility in choosing the right connection method for your application.

(3)Brightness Customization: Depending on specific needs, brightness levels can be adjusted, with options ranging significantly from 300 cd/m² to as high as 2800 cd/m².

(4)Operating Temperature Adjustments: Custom operating temperature ranges can be arranged, offering functionality in varying climatic conditions.

(5)Glass Cover Options: Customization can also extend to the glass cover design, including shape, thickness, openings, and surface treatments like silk screening to enhance aesthetics and functionality.

(6)Touch Installation Customization: Depending on user preferences, touch technology can be adapted to capacitive or resistive options, or excluded altogether.

(7)Anti-Glare and EMI Features: Custom solutions can include enhancements such as anti-glare coatings and electromagnetic interference (EMI) shielding for critical applications.

Support and Services:

Chenghao Optoelectronic is committed to providing outstanding support and services for the CH430WQ22A-CT module. Our dedicated customer service team is available to assist you with any inquiries related to the module’s specifications, installation, and customization options.

We offer detailed documentation, including assembly guides, technical specifications, and customization processes, ensuring that you can maximize the module's capabilities. In addition, our technical support team is equipped to help troubleshoot any problems that may arise post-installation, offering guidance to ensure smooth operation.

We also maintain a robust warranty policy, reinforcing our commitment to quality and customer satisfaction. Trust Chenghao Optoelectronic as your reliable partner in achieving custom display solutions tailored to your specific needs.

FAQ:

Q1: What is the model number of the LCD Display Module?

A1: The model number of the LCD Display Module is CH430WQ22A-CT.

Q2: Which certifications does this LCD Display Module have?

A2: This product is certified with CE, RoHS, and FCC.

Q3: What is the minimum order quantity for this LCD Display Module?

A3: The minimum order quantity is 100 pieces.

Q4: How is the product packaged to ensure safety during shipping?

A4: All products are packed properly to keep them safe. For small sizes, we use tray plus carton packaging, and for bigger sizes, foam slot plus carton. We can also design packaging according to customers' requirements.

Q5: What is the typical delivery time for orders of this LCD Display Module?

A5: The delivery time is typically between 3 to 7 days.

Q6: What payment terms are accepted for purchasing this product?

A6: Payment can be made via TT (Telegraphic Transfer) or other agreed methods.

Q7: What is the monthly supply capacity for the CH430WQ22A-CT LCD Display Module?

A7: The supply ability is up to 50,000,000 pieces per month.
