10.1 Inch 1024x600 TFT LCD Display Module with RGB Interface - 400 cd/m² Industrial LCD

Product Description

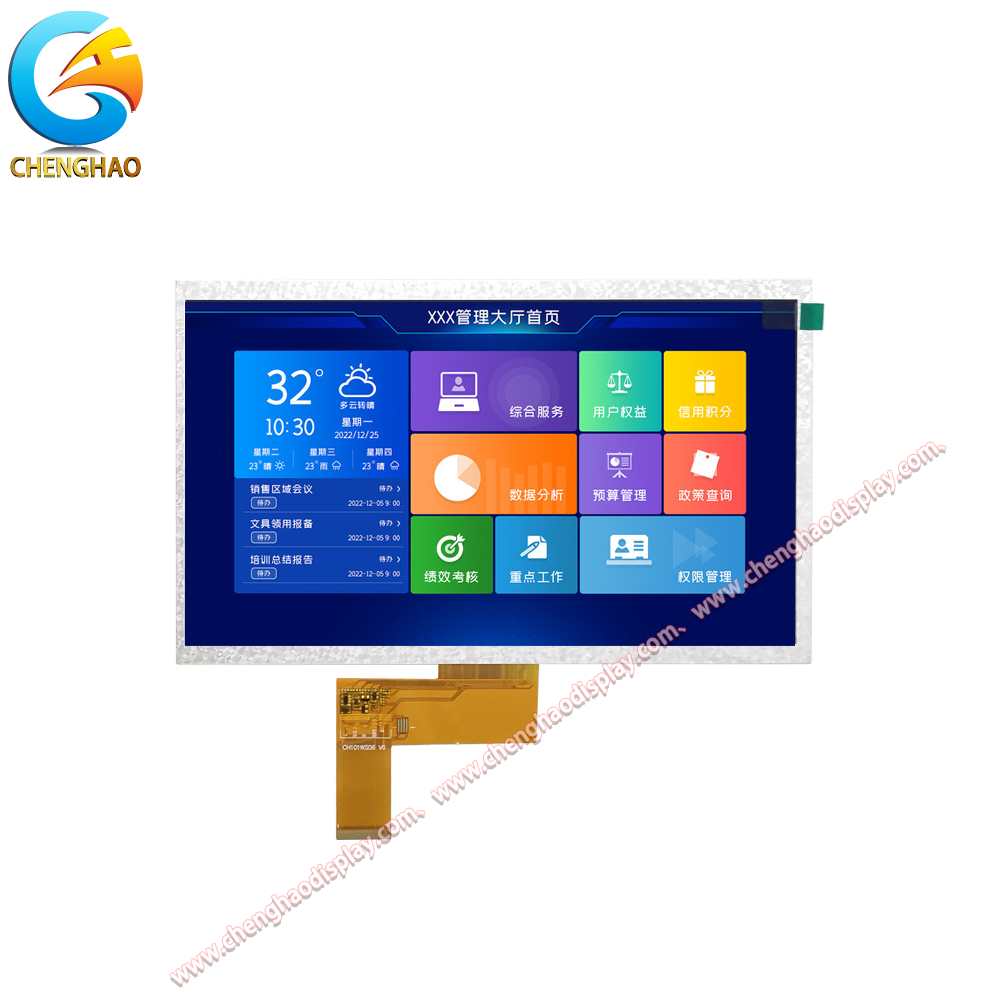

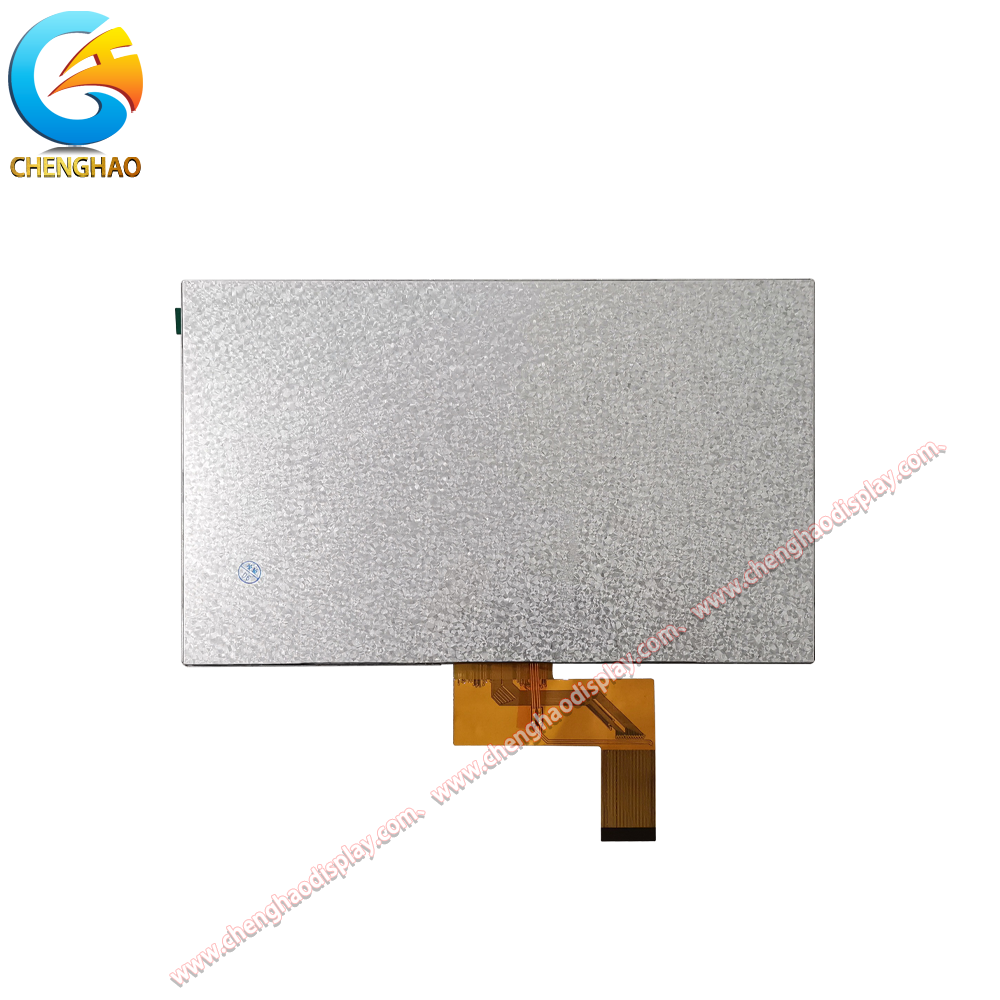

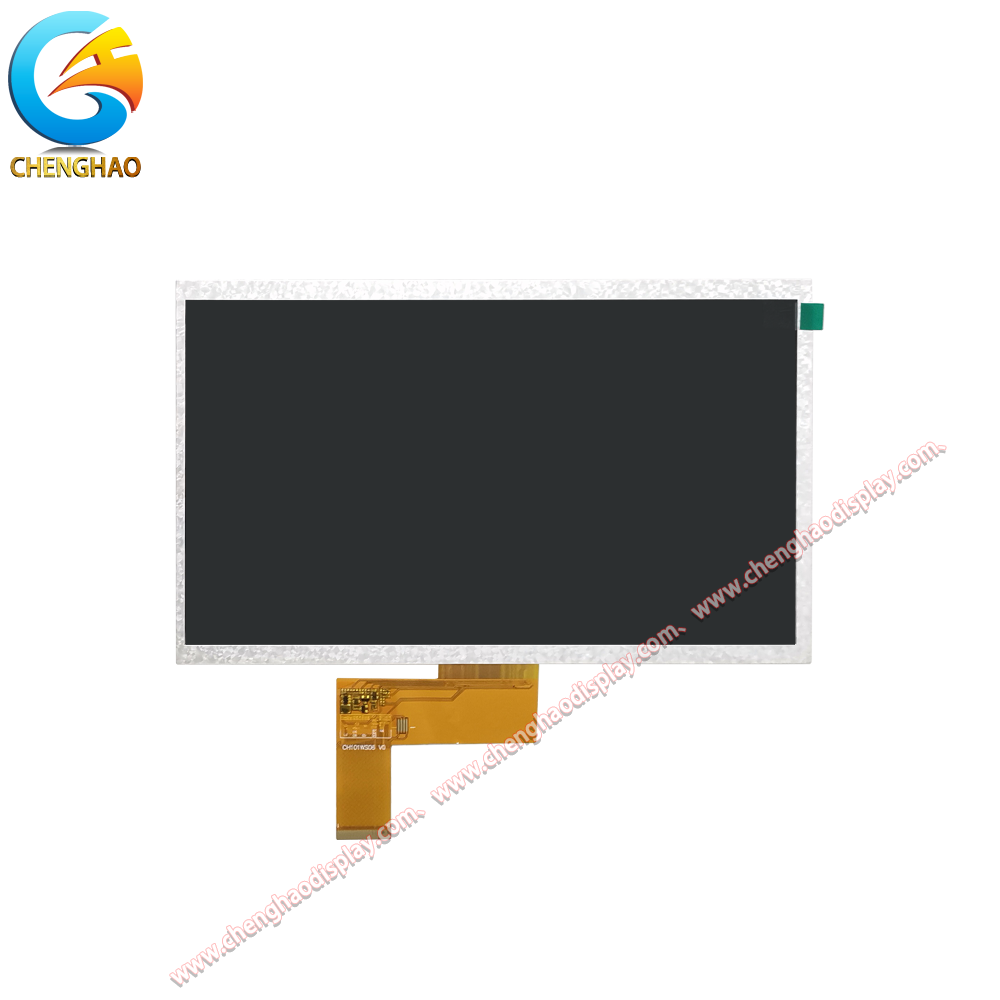

The CH101WS06A is a 10.1 inch TFT LCD display module featuring a wide-aspect-ratio active area of 222.72 x 125.28 mm with a WSVGA resolution of 1024 x 600 pixels. This display module utilizes a standard 24-bit RGB interface with a 39-pin FPC connector at 0.5mm pitch, making it compatible with a wide range of embedded controllers and single-board computers commonly used in industrial and commercial applications. With a typical brightness of 400 cd/m² and a wide viewing angle of 80/80/80/80 degrees in all directions, the display delivers consistent image quality suitable for industrial control panels, human-machine interfaces, and information kiosks. The module operates in transmissive mode and features a durable mechanical design with an LCM outline of 235.0 x 143.0 mm and a bezel opening of 226.25 x 128.1 mm for standard panel mounting. The LED backlight circuit is designed for a forward current of 140 mA, providing stable and uniform illumination across the entire display area. This display module offers a cost-effective solution for applications requiring a large-format color display with a standard RGB interface, making it an excellent choice for embedded system developers and industrial equipment manufacturers. The wide operating temperature range and robust construction ensure reliable performance in demanding industrial environments.

Product Features

• Large 10.1 Inch WSVGA Display for Industrial Applications: The 10.1-inch diagonal screen with 1024 x 600 resolution provides ample space for displaying detailed information, control interfaces, and data visualizations. The 16:9 widescreen aspect ratio is ideal for modern HMI applications, digital signage, and information displays where both content density and readability are important. The 400 cd/m² brightness ensures comfortable viewing in indoor industrial environments.

• Standard RGB Interface for Easy Integration: The 24-bit RGB interface with 39-pin FPC connector is one of the most widely supported display interfaces in the embedded systems industry. It is natively supported by a vast ecosystem of microcontrollers and single-board computers. This eliminates the need for protocol conversion or specialized driver ICs, significantly reducing both BOM cost and firmware development time.

• Wide Viewing Angle for Flexible Installation: With a viewing angle of 80/80/80/80 degrees in all directions, the display maintains consistent color and contrast when viewed from any position. This is particularly valuable for panel-mounted equipment where operators may view the screen from different angles, and for multi-user applications such as public information kiosks where the display must be readable by people at various positions.

• Robust Mechanical Design for Embedded Environments: The LCM outline of 235.0 x 143.0 mm with a bezel opening of 226.25 x 128.1 mm is designed for standard panel mounting. The 39-pin FPC with PI stiffener provides reliable electrical connectivity, while the transmissive display mode with optimized backlight driver circuit ensures consistent performance across the operating lifetime.

Product Drawing

Detailed Specifications

Customized Introduction

At Shenzhen ChengHao Optoelectronic Co., Ltd., we provide comprehensive customization services for TFT LCD modules across various sizes and specifications. For the CH101WS06A and similar large-format display modules, we offer flexible FPC customization including pin configuration adjustments to match specific connector layouts and PCB interface requirements. Brightness levels can be tailored from standard 200-400 cd/m² to high-brightness configurations exceeding 800 cd/m² for outdoor or high-ambient-light environments. Touch panel options include capacitive touch, resistive touch, or no touch configuration. We also provide glass lens cover customization with adjustable thickness, shape, and color, as well as anti-glare and anti-fingerprint surface treatment options.

Application Cases

• Industrial HMI and Control Panels: The 10.1-inch size with 1024x600 resolution is an ideal choice for industrial human-machine interfaces, CNC machine control panels, and factory automation HMIs. The wide viewing angle allows operators to read the display from various positions around the equipment, while the RGB interface simplifies connection to common industrial controller boards.

• Digital Signage and Information Kiosks: The large display area makes this module suitable for indoor digital signage applications, public information displays, and wayfinding kiosks. The 400 cd/m² brightness delivers clear visibility in indoor environments such as lobbies, retail spaces, and transportation hubs.

• Embedded System Prototyping: The standard RGB interface makes this display an excellent choice for prototyping platforms. It can be directly connected to various development boards that support parallel RGB output, providing engineers with a reliable display for their embedded projects.

FAQ

Q: What is the typical application for the CH101WS06A display module? A: This 10.1-inch TFT LCD module is designed for industrial HMI, digital signage, and embedded system prototyping. Its 1024x600 resolution and wide viewing angle make it suitable for panel-mounted equipment and public information displays.

Q: Does this module include a touch panel? A: No, the CH101WS06A is a display-only module. If touch functionality is required, we offer customization to add capacitive or resistive touch panels.

Q: What is the LED backlight lifespan? A: The LED backlight is rated for typically 30,000 to 50,000 hours of continuous operation at rated current.

Q: What is the difference between LCM outline and active area size? A: The LCM outline is the physical outer dimensions of the module including the bezel. The active area is the actual region where pixels are displayed. When designing your enclosure, refer to the LCM outline for proper fit.

Q: Is the display suitable for outdoor use? A: The standard version with 400 cd/m² brightness is designed for indoor use. For outdoor environments, we recommend our high-brightness customization option.
